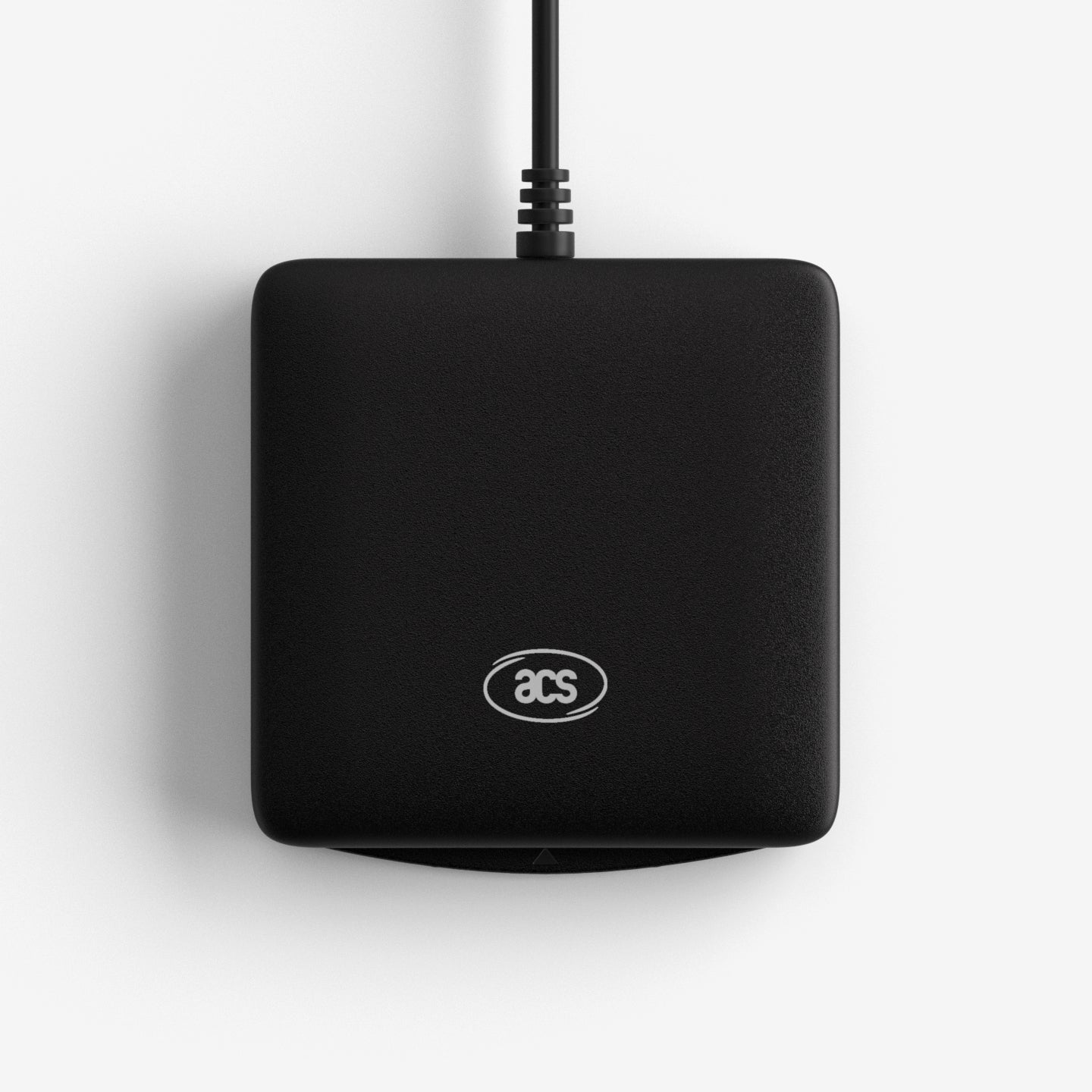

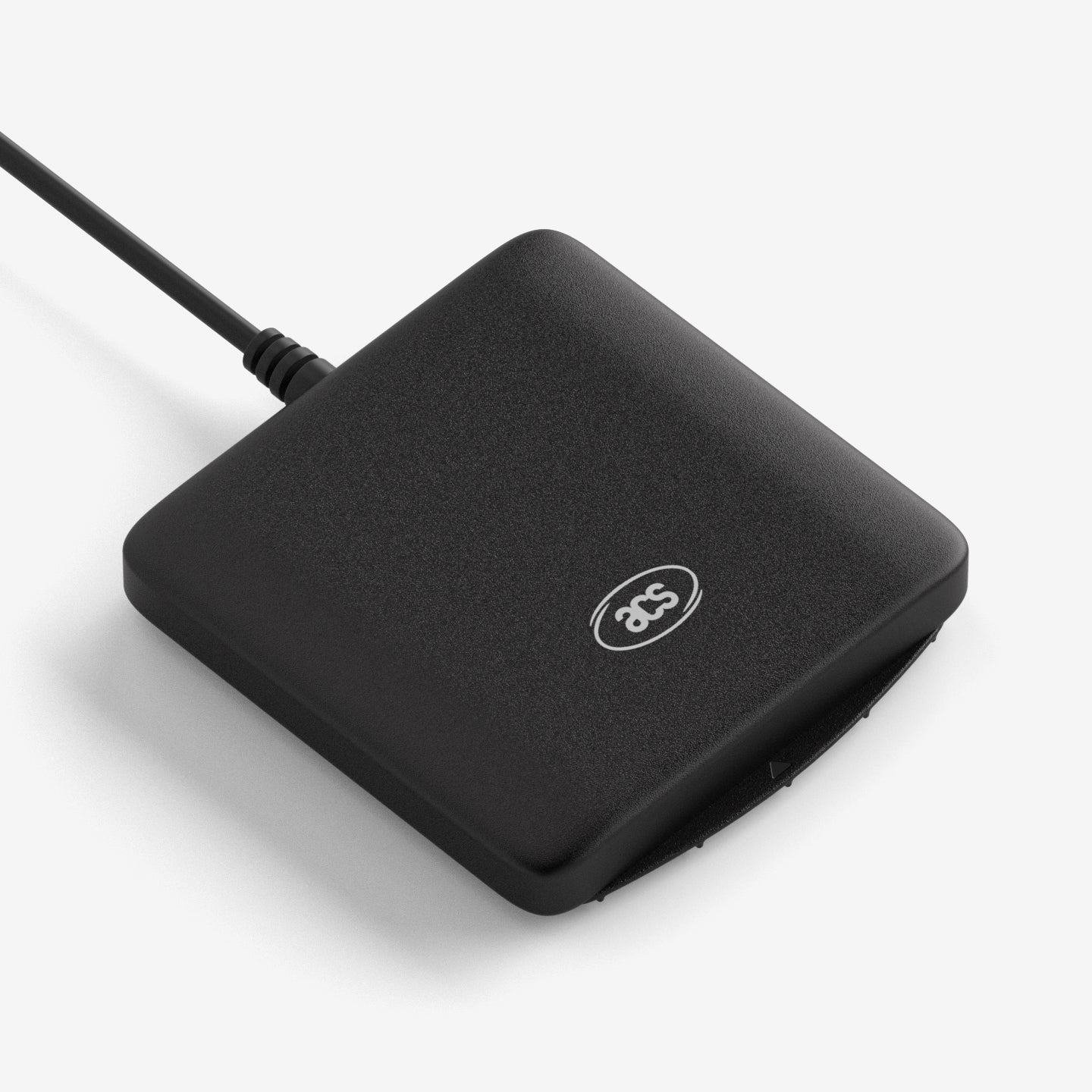

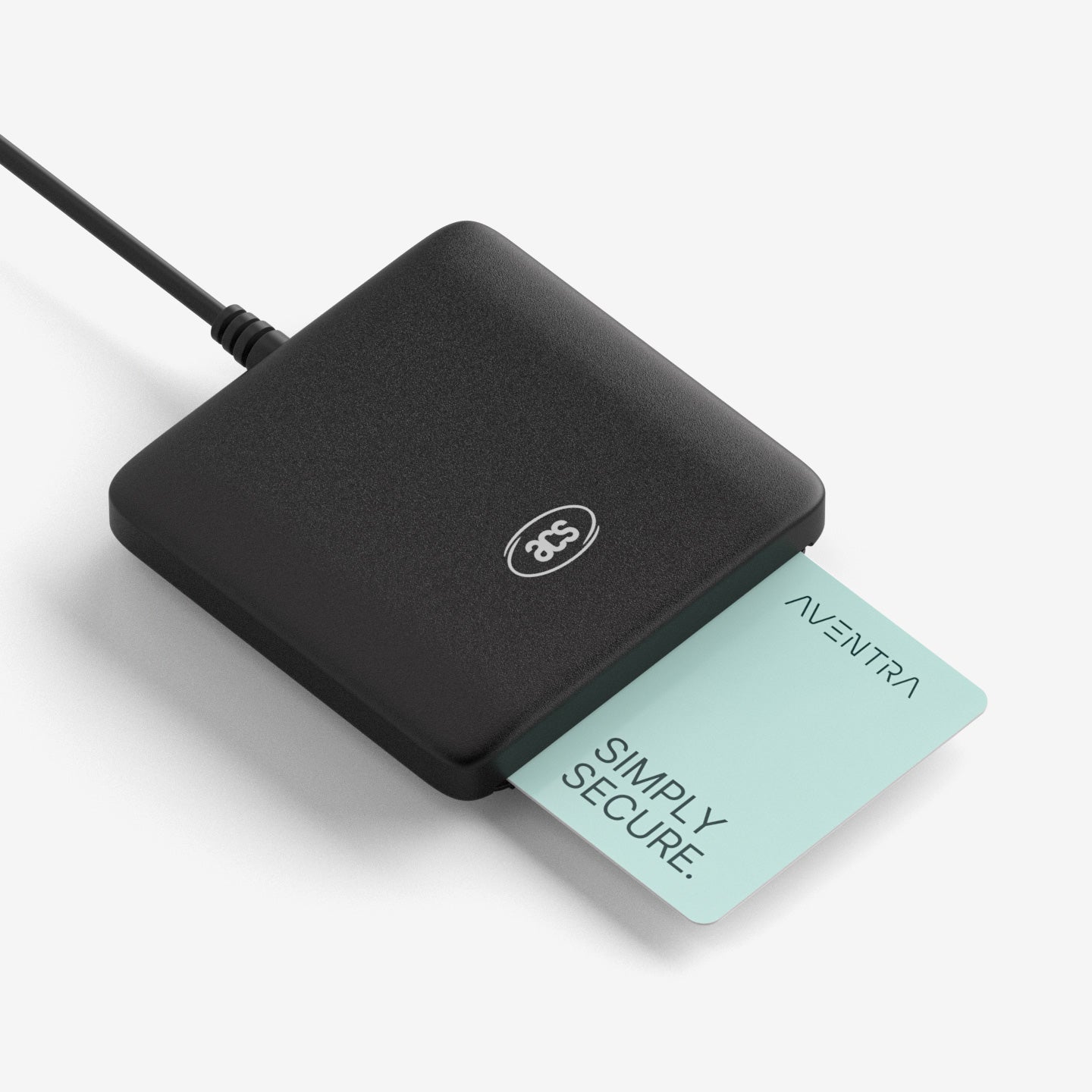

ACR39U Smart card reader

Dimensions 72.2mm (L) x 69.0mm (W) x 14.5mm (H)

Compliance / Certifications

• EN60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH, TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China)
• Microsoft® WHQL

Connection USB 2.0 Full Speed

Supply voltage Regulated 5V DC

Input current Max. 50mA

Operating temperature 0-60 °C

CLK Frequency 4.8 MHz

MTBF 500,000 hrs

Smart card connection support

• ISO 7816 Class A, B and C ( 5 V, 3 V, 1.8 V )

Operating system support

• Windows®
• Linux®
• Mac OS®
• Android™
• Solaris

• Supports ISO 7816 classes A, B and C (5V, 3V, 1.8V)
• Supports microprocessor cards using T = 0 or T = 1 protocol

Supports memory cards such as:

• Cards that follow the I2C bus protocol (free memory cards) with up to 128 byte pages, including:

- Atmel: AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024
- SGS-Thomson: ST14C02C, ST14C04C
- Gemplus: GFM1K, GFM2K, GFM4K, GFM8K

• Cards with smart 1k byte EEPROM with write capability including:

- Infineon®: SLE4418, SLE4428, SLE5518 and SLE5528

• Cards with intelligent 256-bit EEPROM with write function including:

- Infineon®: SLE4432, SLE4442, SLE5532 and SLE5542

• Supports PPS (protocol and parameter selection)
• Short circuit protection

Application programming interface:

• Supports PC / SC
• Supports CT-API (wrap over PC / SC)
