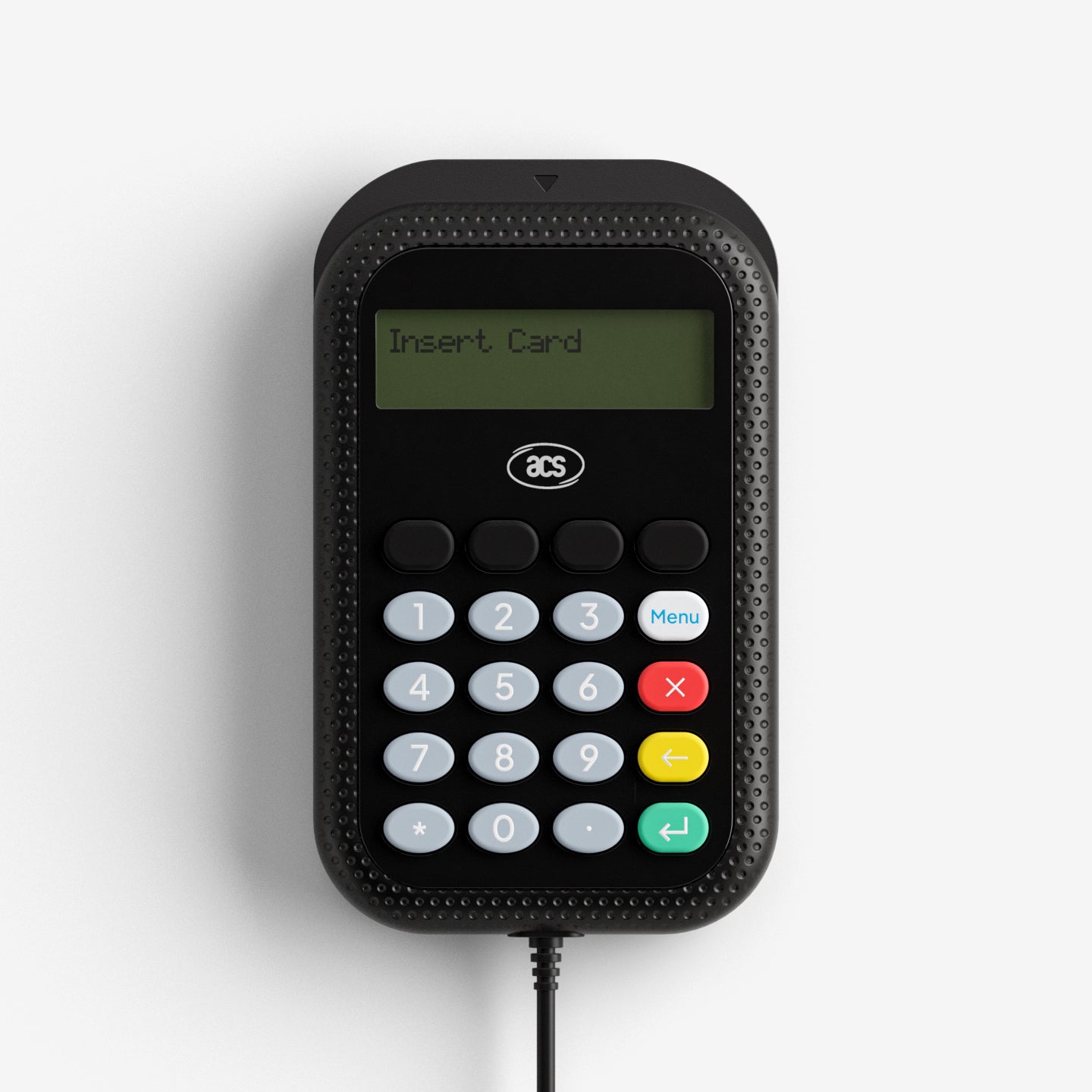

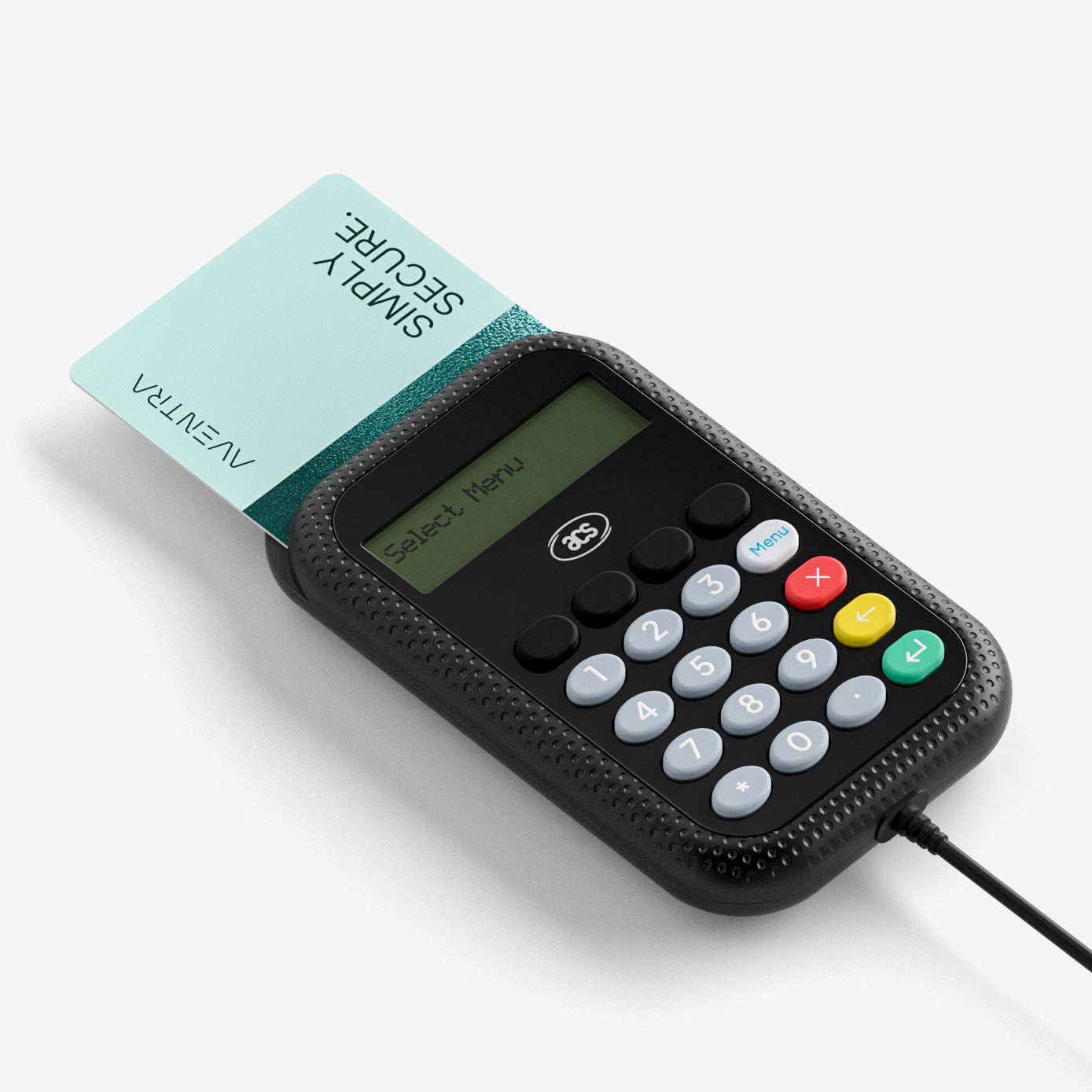

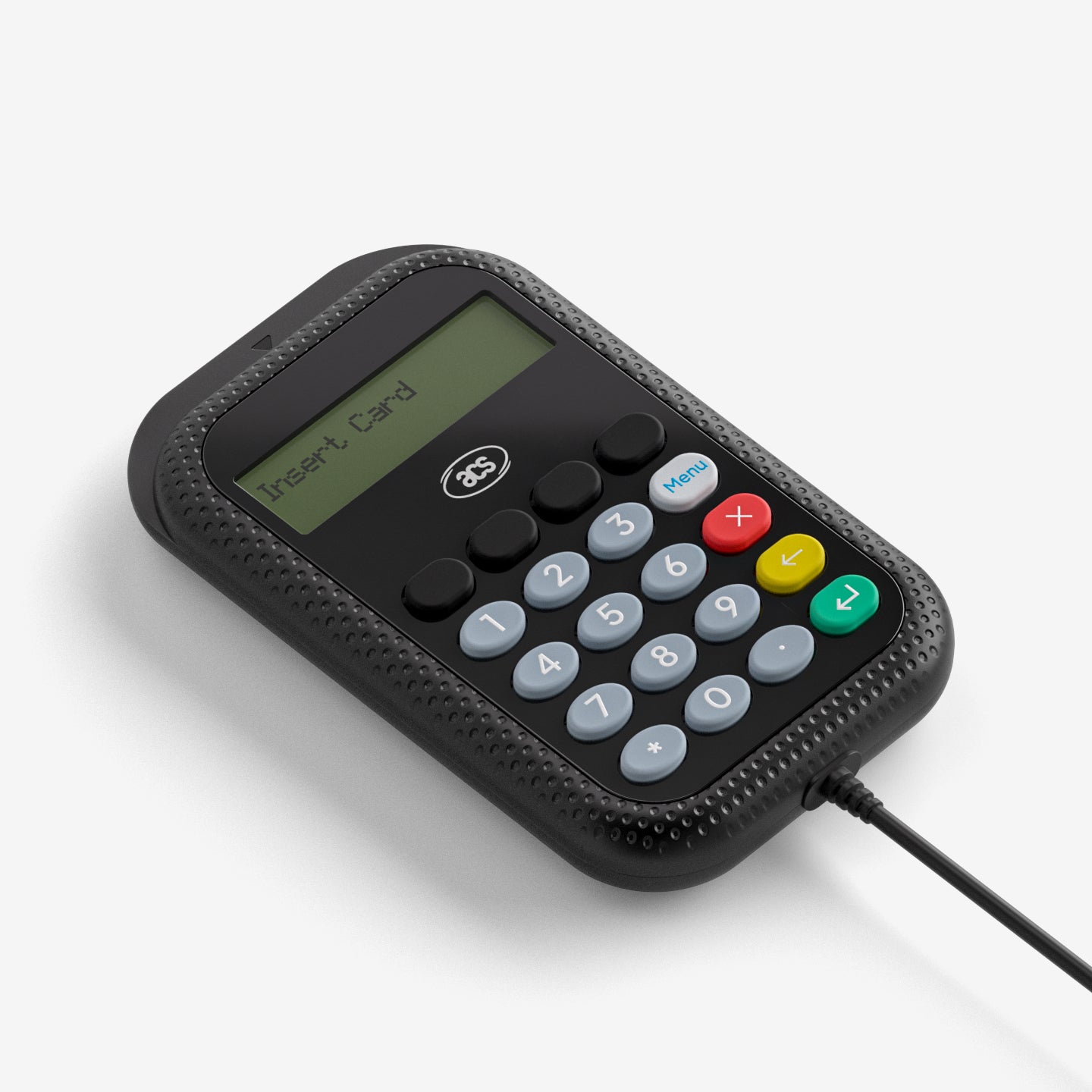

APG8201-B2 Smart card reader with key pad

APG8201-B2 Smart card reader with key pad

SKU:APG8201-B2

Regular price
€64,73
€51,58 (Tax 0%)
Regular price Sale price €64,73
Sale Sold out
Shipping calculated at checkout.

In stock

Company, remember to register before placing an order!

View full details

Tuotetiedot

Description

The APG8201-B2 is a smart card reader with an integrated keypad and LCD display. The device features SPE (Secure PIN Entry) functionality, which protects PIN codes from threats such as viruses and USB sniffing, preventing potential attacks. It ensures secure cardholder authentication, allowing users to safely perform online logins and other transactions.

Drivers can be downloaded directly from the manufacturer's website: www.acs.com.hk.

Technical information

Dimensions 95.0mm (L) x 60.0mm (W) x 13.0mm (H)

Connection USB 2.0 full speed

Power source from the USB port

Supply voltage Regulated 5V DC

Input current max. 50mA

Operating temperature 0-50 °C

CLK frequency 2 MHz

MTBF 60,000 hours

Smart Card Interface support

  • ISO-7816 class A (5V), T=0 and T=1
  • ICC Slot 1: contact

Compliance / Certifications

  • PC/SC, PC/SC 2.0 Part 10 (SPE) CCID, CE, FCC, RoHS, REACH
  • Microsoft WHQL: Windows 2007, Windows 8, Windows 8.1, Windows 10
  • Windows Server 2003, Windows server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Operating System support

  • Windows
  • Linux
  • Mac
  • Android 3.1 and up

Features

  • USB 2.0 Full Speed ​​Interface
  • Black
  • Supports PC/SC
  • Supports PC/SC 2.01 Secure PIN code entry (SPE)

Smart card reader:

  • Supports full size microprocessor cards (T=0, T=1 Protocols)
  • Supports ISO 7816 class A cards
  • Allows semi-insertion of cards

Built-in peripherals:

  • Graphic LCD display for logos and Multiple-language characters
  • Monotone buzzer
  • Durable keypad with 20 silicone rubber keys
  • Key symbol on LCD to identify SPE mode
  • Dot matrix LCD
  • Resolution: 96 pixels x 16 pixels

  • Supports PPS (protocol and parameter selection)
  • Short circuit protection
  • RoHS Compliant
