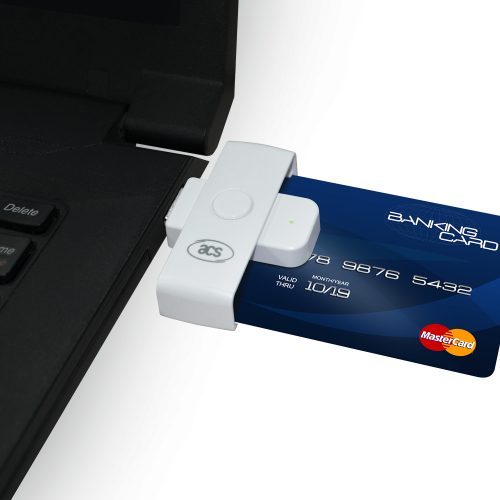

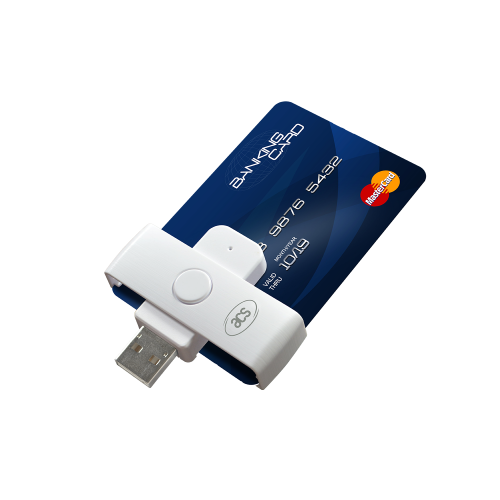

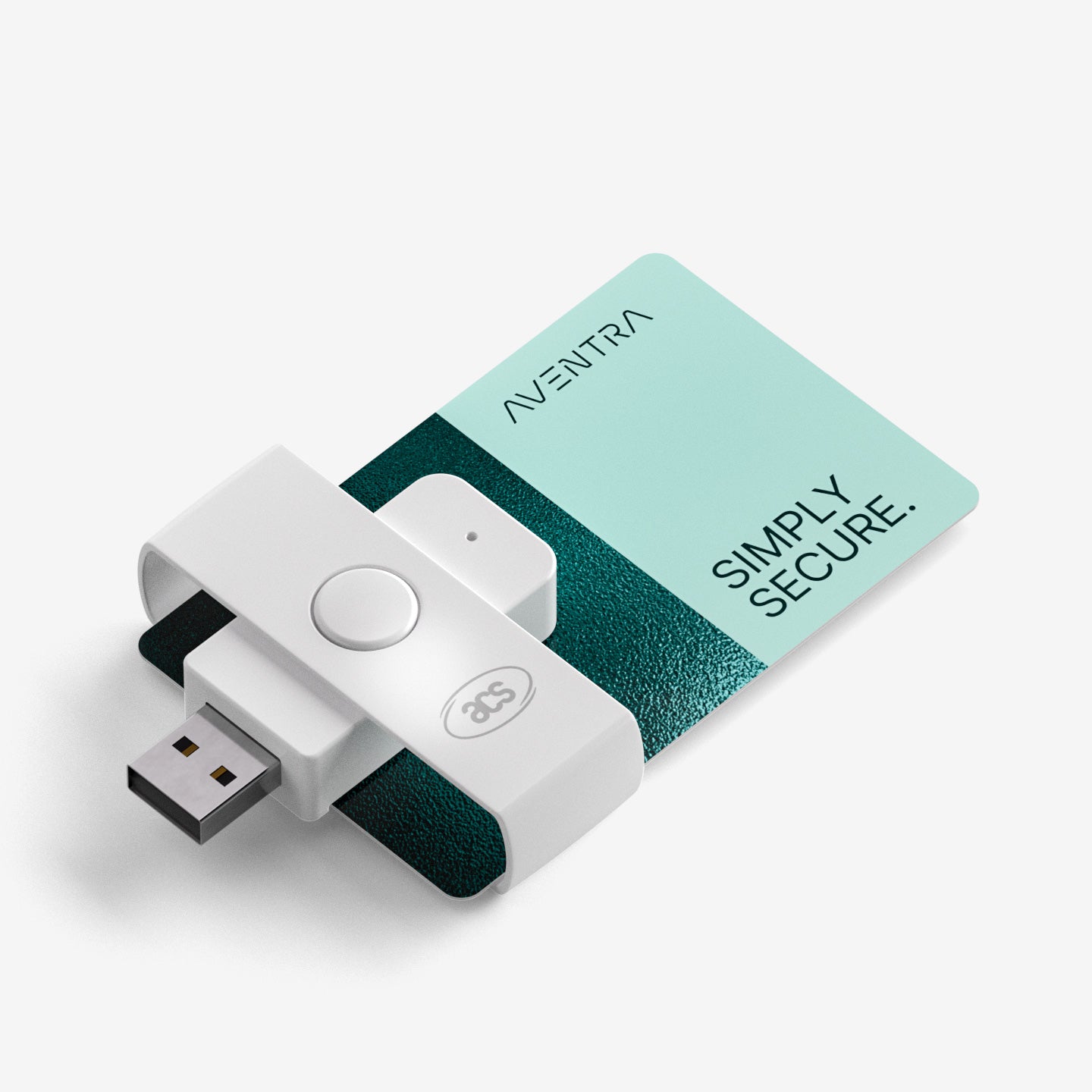

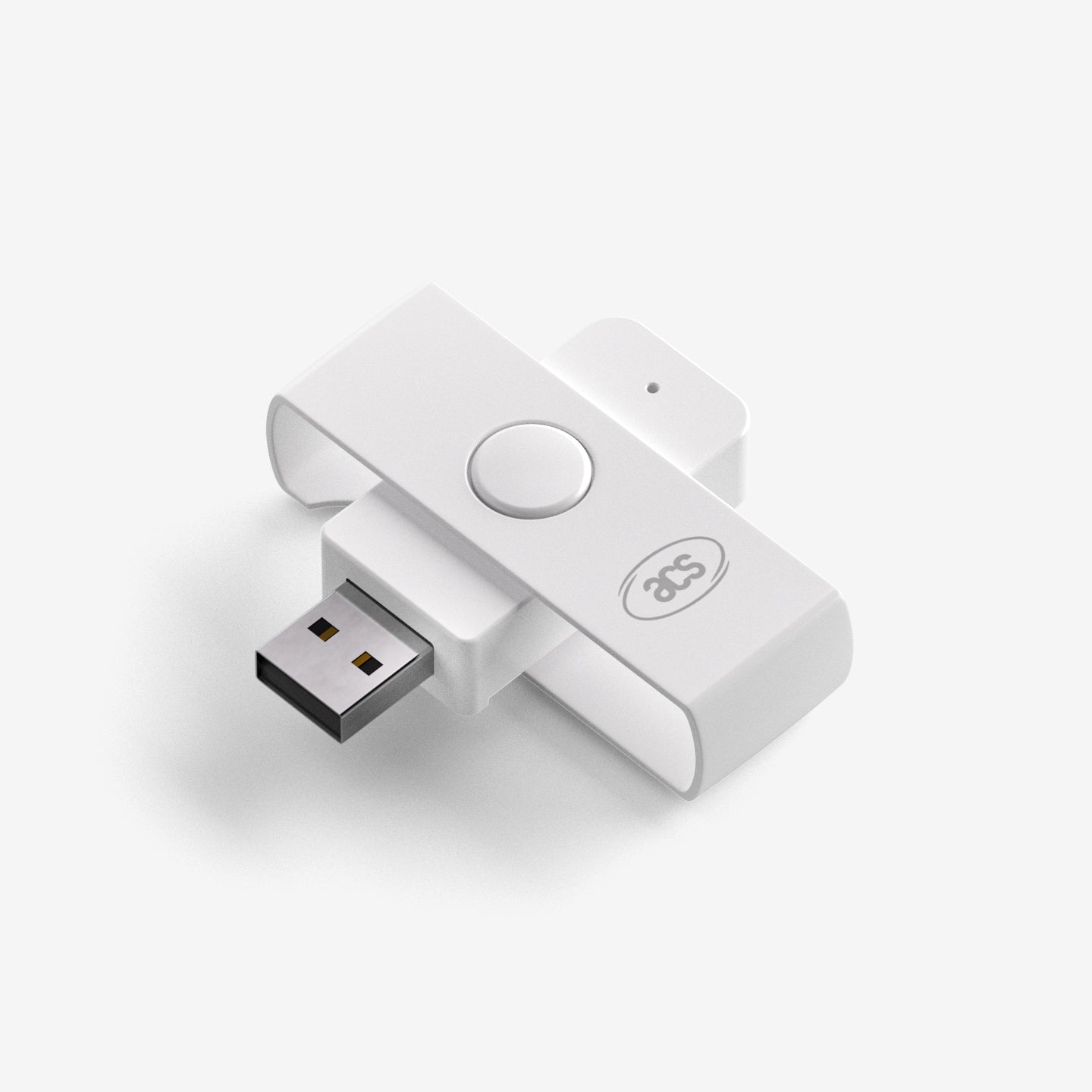

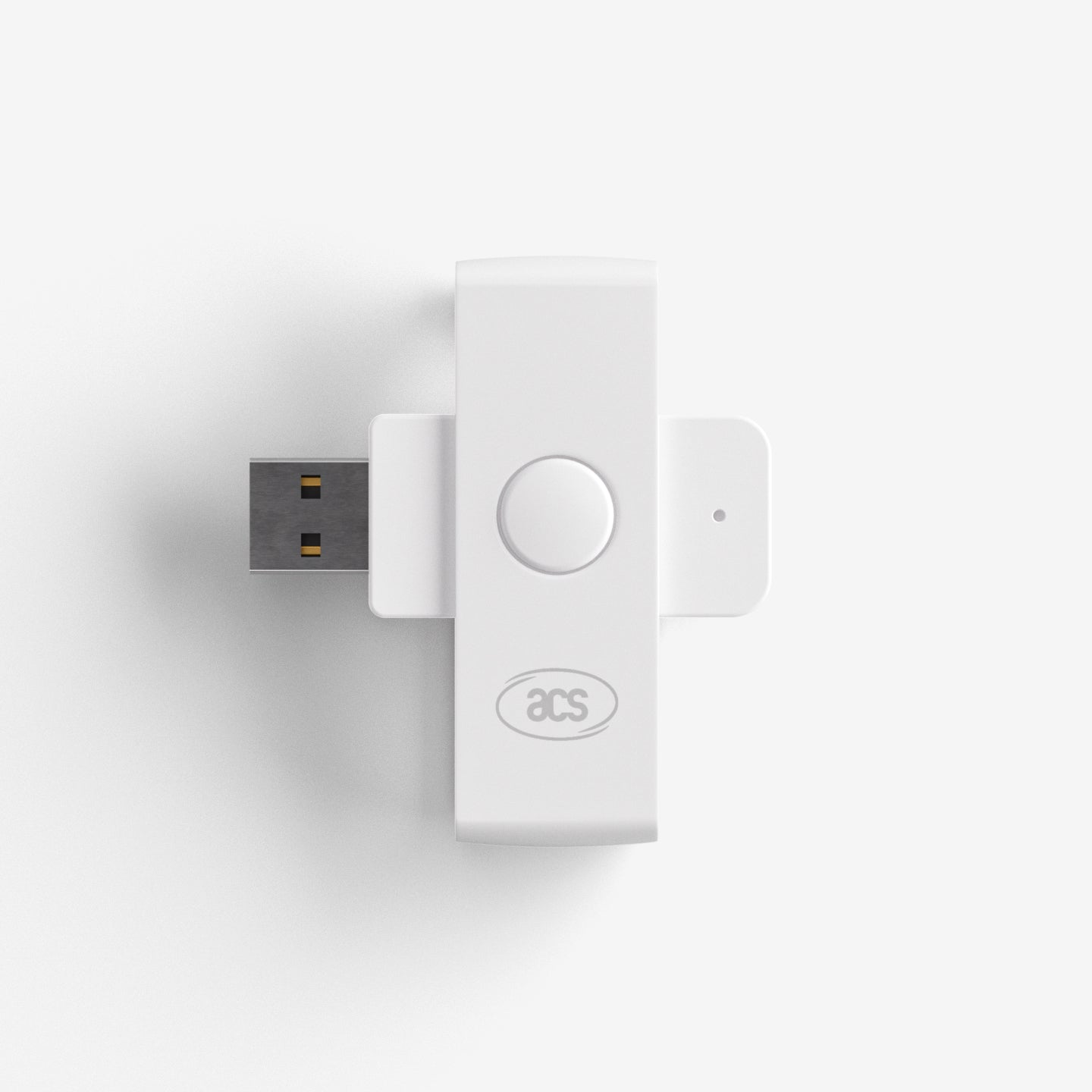

ACR39U-N1 Smart card reader

Dimensions 58.0mm (L) x 20.0mm (W) x 13.7mm (H)

Interface USB 2.0

Supply voltage Regulated 5V DC

Input current max. 50mA

Operating temperature 0-50 °C

CLK Frequency 4 MHz

MTBF 500,000 hours

Smart Card Interface support

• ISO-7816 Class A, B and C (5V, 3V, 1.8V), T=0 and T=1
• CAC & PIV Smart Cards

Compliance / Certifications

• EN 60950/IEC 60950, EMV 2000 Level 1, PC/SC, CCID, CE, FCC, RoHS 2, REACH, TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC, WEEE
• Microsoft WHQL: 2000, 2003, XP, Vista, 2008, 2008 R2, 2012, 2012 R2, 2016, 7, 10

Operating system support

• Windows
• Linux
• Mac
• Android

• USB
• Supports ISO-7816 Class A, B and C ( 5V, 3V, 1.8V ) cards
• Performs read and write operations of all microprocessor cards T=0, T=1 protocols

Supports most popular memory card types on the market:

• Cards after the I2C bus protocol (free memory cards), such as:
  Atmel: AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024
  SGS-Thomson: ST14C02C, ST14C04C
  Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
• Cards with smart 256-bit EEPROM and write function: SLE4432, SLE4442, SLE5532, SLE5542
• Cards with smart 1K byte EEPROM and write function: SLE4418, SLE4428, SLE5518, SLE5528
• Cards with 104 type EEPROM (no loadable token counter cards): SLE4406, SLE4436, SLE5536, SLE6636
• Cards with secure memory IC with password and authentication: AT88SC153, AT88SC1608
• Cards with smart 416-bit EEPROM with internal PIN: SLE4404
• Cards with safety logic in the application area: AT88SC101, AT88SC102, AT88SC1003

• Supports PPS (protocol and parameter selection)
• Short circuit protection
• RoHS Compliant
